Feature:

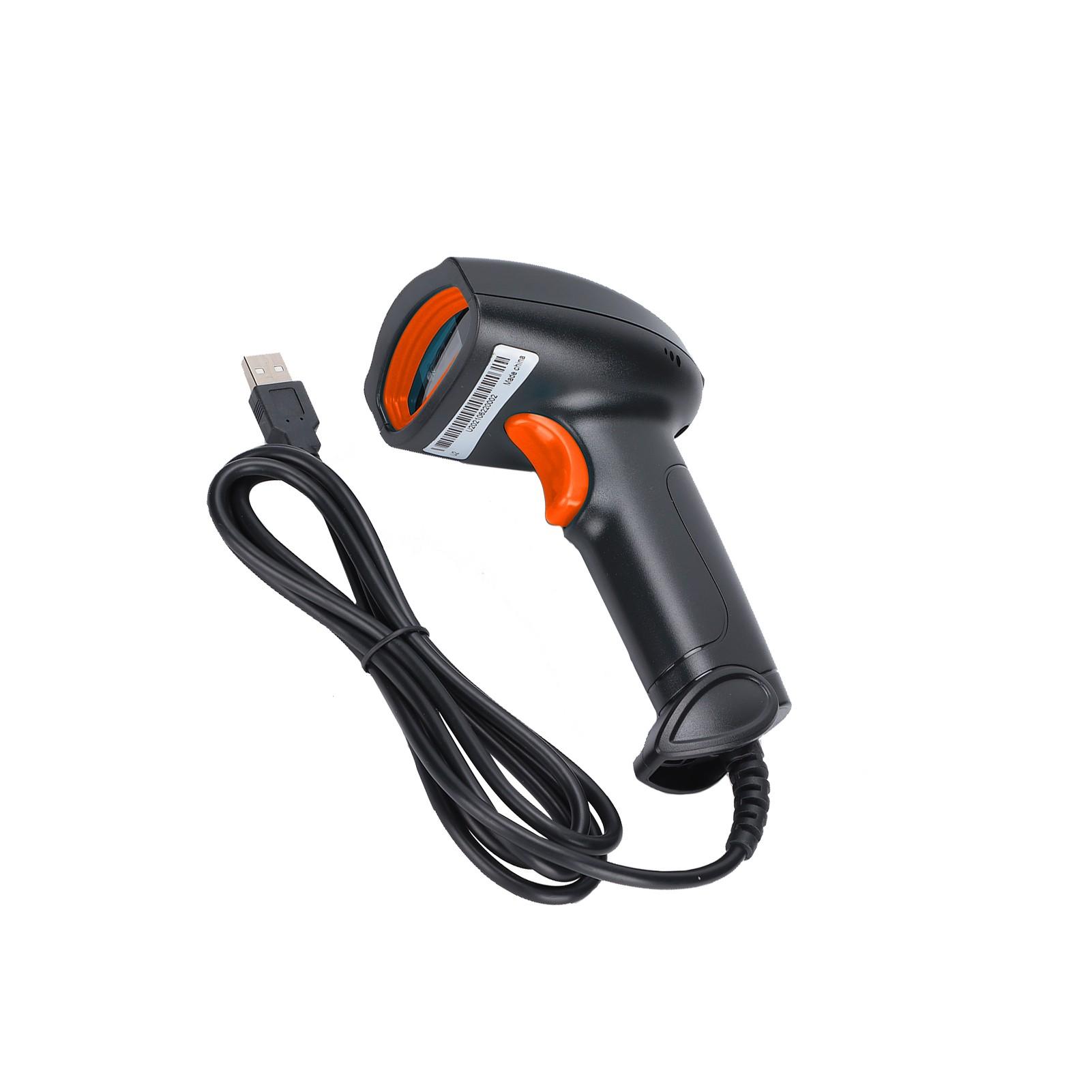

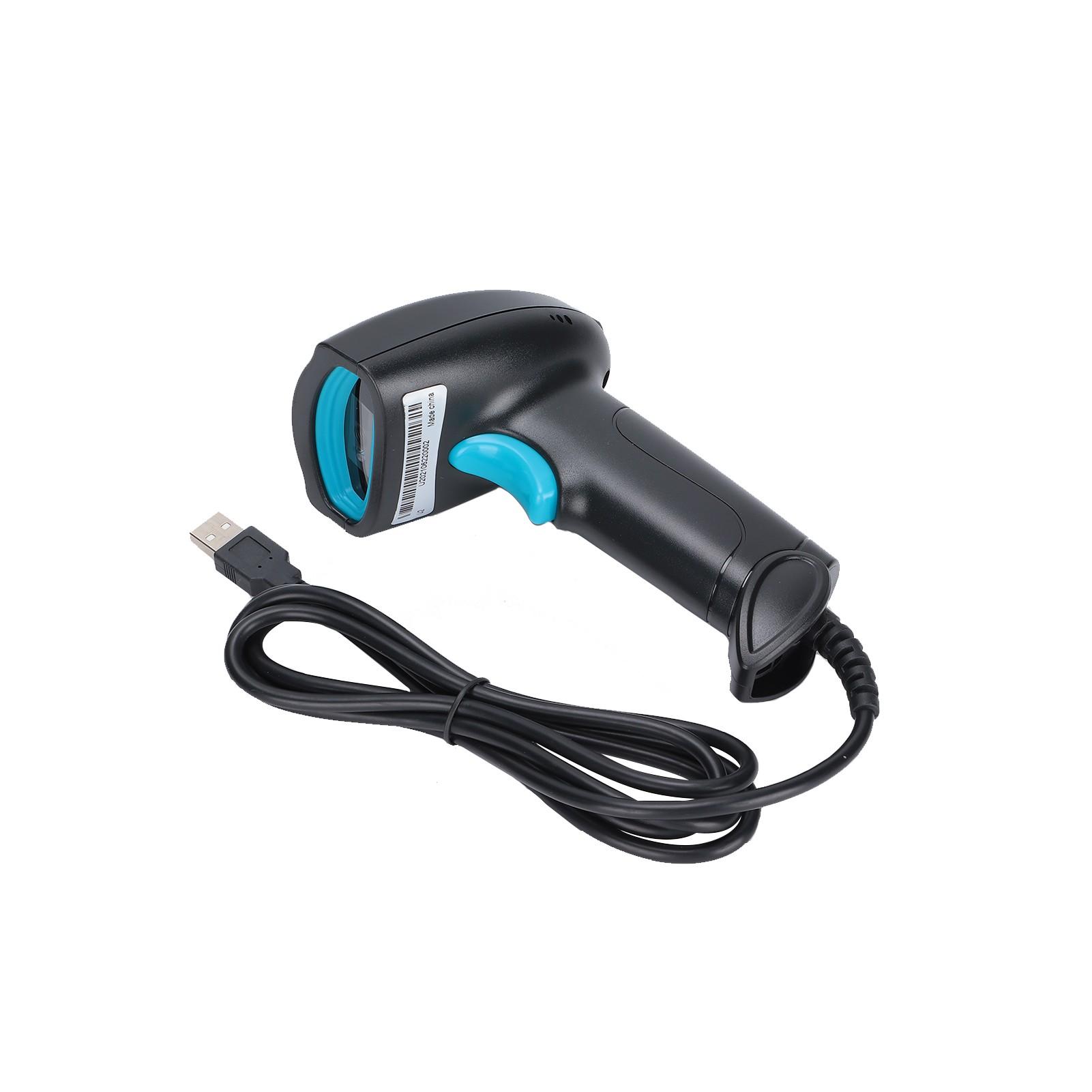

1. The wired two‑dimensional barcode scanner is small in size, light in weight, ergonomically designed, and comfortable in hand
2. Durable, dustproof and waterproof grade IP54, and can withstand the impact of a 1.5‑meter drop to the concrete floor
3. Adopt international advanced image transmission technology, coupled with two‑way communication and instant error correction feedback
4. Equipped with auxiliary lighting, it can be used in different lighting environments, and it can also be used at night, with strong applicability
5. Supports reading of paper barcodes, LCD display barcodes, etc., and reading of non‑standard barcodes such as printing distortion, wrinkles, folds

Specification:



Item Type: Barcode Scanner
Material: ABS
Model: U2
Power: 1.60W (Working) / 0.40W (Standby)
Resolution: 752 x 480 Pixels
Scanning Angle: ±60°, ±40°, ±42° (Left and Right, Front and Back, Rotation)
1D: For UPC-A/ UPC-E1/ UPC-E0/ EAN-13/ EAN-8/ ISBN (Bookland EAN)/ ISSN/ Code 39/ Code 39 Full ASCII/ Code 32/ Trioptic Code 39/ Interleaved 2 of 5/ Industrial 2 of 5/ Codabar (NW7)/ Code 128/ ISBT 128/ Code 93/ Code 11 (USD-8)/ MSI/Plessey/ UK/Plessey/EAN 128/ China Post/ China Finance / GS1 DataBar (Formerly RSS) Variants
2D: For PDF417/ MicroPDF417/ QR Code
Resolution: 3.5mil (High Density Series), 1mil=0.0254mm
Reading Depth of Field:
3.5 mil: Code128 (9 Characters) 15mm—35mm
5 mil: Code39 (20 Characters) 33mm—77mm
13 mil: UPC (12 Characters) 17mm—150mm
20 mil: Code39 (5 Ccharacters) 55mm—195mm
6.7 mil: PDF417 (20 Characters) 25mm—90mm
10 mil: DM (20 Characters) 15mm—115mm
20 mil: QR (20 Characters) 9mm—175mm
Prompt Mode: Buzzer, LED Indicator
Interface: USB
Trigger Mode: Manual
Cable Standard: Straight Line, 1.65 Meters
Setting Method: Manual (scan the Setting Barcode in Turn)
Electromagnetic Compatibility: EN55022, EN55024
Electrical Safety: EN60950-1
Waterproof and Dustproof Sealing Grade: IP54
Earthquake Resistance: More Than 5 Times of Impact from a 1.5-Meter Drop to the Concrete Floor





Package List:
1 xBarcode Scanner1 x User Manual
