Specification:

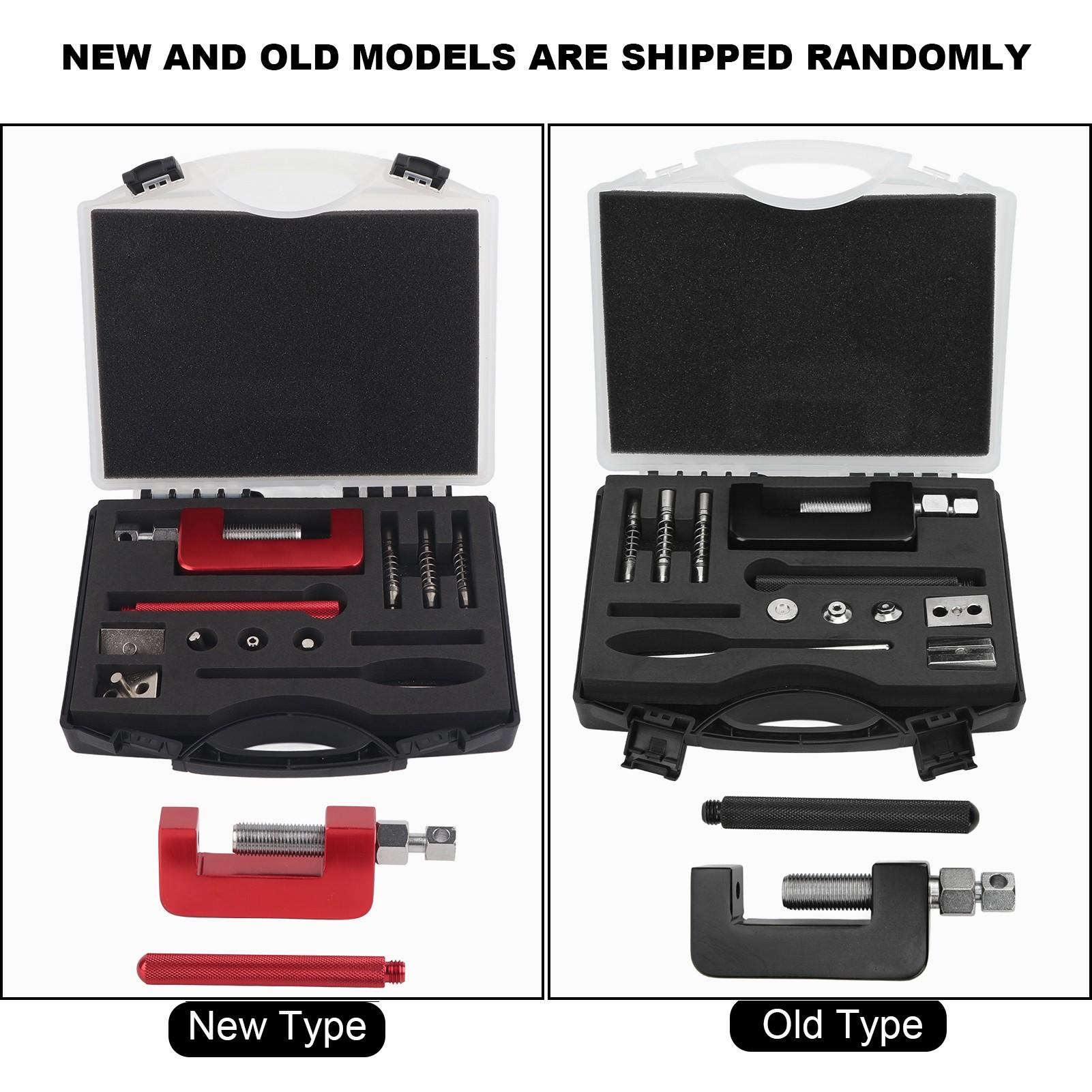

Item Type: Chain Cutter Rivet Tool Set
Material: Alloy SteelFitment: UniversalKits include 3 pin sizes that fit most chains: 2.2mm/0.09in, 2.9mm/0.11in and 3.8mm/0.15in.
1. Spring for use with all pins and riveter
2. 2.2mm breaker pin for use with cam chains
3. 2.9mm breaker pin for use with 420 size chains
4. 3.8mm breaker pin for use with 428, 520, 525, 53050, 532, 630 size chains
5. Tool body
6. Lower pin guide for use with 2.2mm pin
7. Riveter pin
8. Lower press plate, slotted for use on 520, 525, 53050 size chains
9. Top press plate, 2holes foruseon520, 525, 53050 size chains
10. Small anvil for use while riveting link on cam chain
11. Large anvil for use while riveting link on 520, 525, 1753050, 532, 630 size chains
12. Alignment bolt
13. Push-bolt
14. Handle
15. Slide lever

:
Never use a power tool to tighten or loosen any part of the tool at any .
Each procedure performed using this tool can only be done manually using the included slider or 14 mm wrench. Do not use wrench extension rods or circuit breaker rods. Doing so may damage the tool.
Make sure the tools are clean before each use. Tool threads should be lubricated to ensure smooth operation and to provide tactility for any restraints or excessive tension when in use.
