Specification:
Item Type: Wireless Remote Control Switch
Material: ABS + Metal
Working Voltage: DC12V
Control Distance: Approx. 1000m/1093.6yd
Load Power: 1000W
Control Type: Multiple Control
Working Current: 10A
Rated Frequency: 433.92Mhz
Transmit Power: Less than or to 10dBm
Coding Method: Learning Code
Security Code 32 Bits: 4.3 Billion Groups
Receiver Sensitivity: -110dBm
Transmitter Function Button: Jog Auto Lock Interlock
The Number of Compatible Remote Controls: Send and Receive More Than Once
Built in Accessories: Send and Receive
Output Mode: There are five output modes: signal self locking, signal interlocking, signal unlocking, signal unlocking and self locking coexist
Model: Dry DC 12V 23A 60mah including matching batteryHow to Use:Output Method:

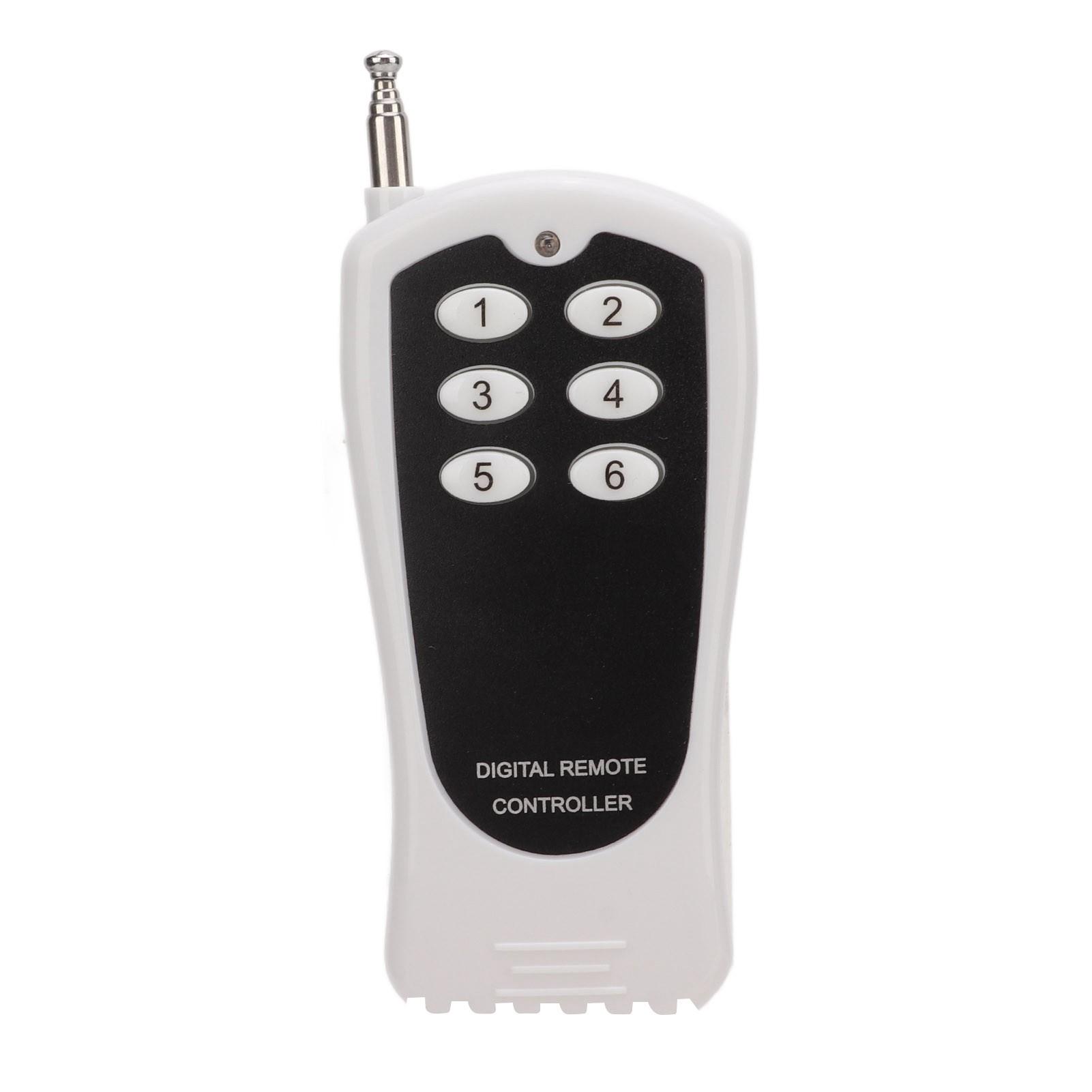

1. Signal self locking: press the No. 1 button on the remote control to learn
Press the 1 button of the remote control, the relay corresponding to the 1 button will pick up and hold, and then press the 1 button, the 1 relay will be disconnected; press the 2 button of the remote control, the 2 button corresponding relay will pick up and hold, and then press the 2 button, the 2 relay will be disconnected; 3, 4, 5, 6 keys work in this way.
2. Signal interlocking: press the No. 2 key of the remote control to learn
Press the 1 button on the remote control, the corresponding 1 relay will pick up and hold, press the 2 button, the 1 relay will be disconnected, and the relay corresponding to the 2 button will pick up and hold; the 3, 4, 5, and 6 buttons will work in this cycle.
3. The signal is not locked: press the No. 4 button on the remote control to learn
Press the 1 button of the remote control, the relay corresponding to the 1 button is pulled in, and the relay will be disconnected after releasing it. Press the 2 button, and the relay corresponding to the 2 button will be pulled in, and then disconnected after releasing; 3, 4, 5, 6 The keys work in this cycle.
4. Signal 1 channel self locking and 5 channels non locking coexist: press the No. 5 key of the remote control to learn the 6 relays corresponding to the remote control, of which 1 channel is self locking, 2, 3, 4, 5, and 6 are Not lock.
