Operating Temperature: -40~85 Celsius
Model Number: Step Up Module Converter
Dissipation Power: none
Condition:
is,customized: Yes
Type: Logic ICs
Supply Voltage: DC 3V-35V
Application: Power source
Output Voltage: DC 4V-40V (continuously adjustable)
Efficiency: 94%(MAX)
Load capacity: Max 80W
The way of Connection: the connection terminal is does not need to be welded, the "IN" is the input, and the "OUT" is the output.
colour: Picture color
Material: PC
size: 3.7 x 3.2 x 1.5cm
Package Contents:

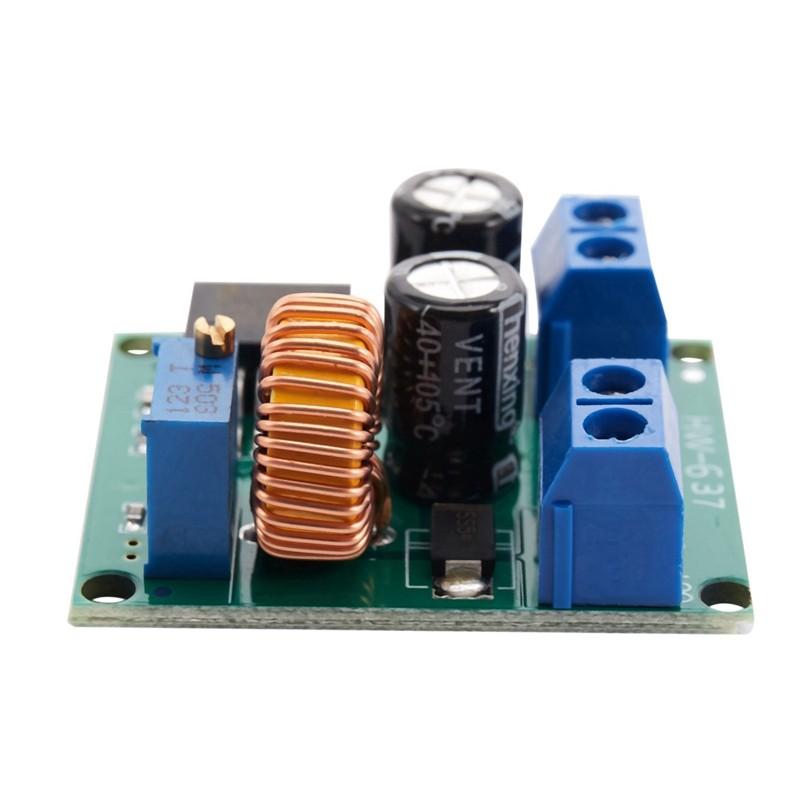

4 x adjustable step up power module
Note:
When the output voltage is closer to the output voltage,the carrying capacity is higher,and the efficiency is also higher.
