Input Power:DC10V-14V
Standby Current: Less than 5MA
RF Frequency:315M or 433M
RF working mode:superheterodyne
Receive sensitivity: Greater than 97dbm
Transmitting distance: 20 meters above
Decoding mode:MCU software decoding
Remote storage: 25 pcs
Support remote type: Learning code, Fixed code(Rolling code can be design)
Working mode:Momentary, Toggle, Latching Time delay (5s,10s,15s)

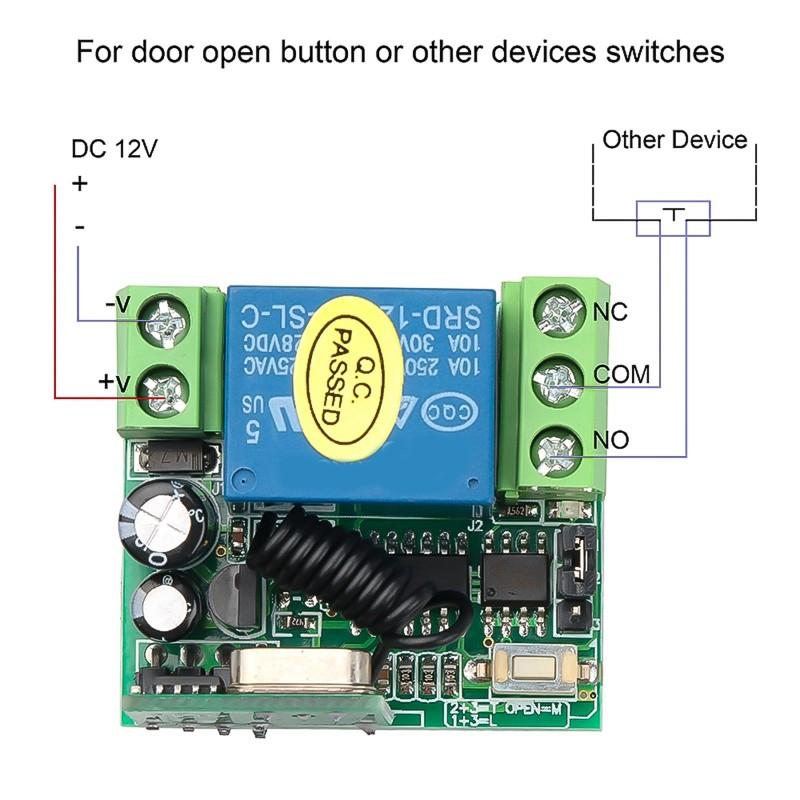

Wiring type:fixed terminal
Output Terminal:NO, NC, COM
About Working mode:
Momentary: Push the remote button, the relay connects, release the remote button, the relay dis-connects.
Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay dis-connects.
Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Time delay mode:Push the remote control button, the relay connects, from when release the remote button, after 5s or 10s or 15s, the relay disconnect automatically.
NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs, the initial remote control will be lost or not working.
Material:ABS+Electronic components
colour:silver + black
Package Contents:
1 * single switch control board
1 * product packaging case
1 * Remote Control
